Discussion Starter · #1 ·
The crash was me being an idiot and going off a 20-30 ft embankment after locking my brakes twice on a unexpected sharpening turn and the bike tumbled down hitting upside down on the handlebars, the rear, and the exhaust. I walked away just fine and got extremely lucky.

Here is how the bike looked before the crash.



Here it is after.






Gauges destroyed, handlebars bent, something broken inside one of the forks causing the wheel to point to the right, and the clutch cable threaded tube going into the lever even snapped in half. The rear plastics were just about all destroyed. Headers were bent and exhaust nearly broken in half. Engine side cover has some scrapes and the gas tank is dented.

I'm new at working on motorcycles so I'm learning as I go, input is welcome.
I also have a 1982 KZ1000 police bike street tracker that I'm working on at the same time (my current daily driver since crashing my SV650).
Pictures
Build Thread


On to the fun!



That day I stripped it down to this to make sure everything structural is fine. The frame, subframe, and rear sets were undamaged in the crash. It started right up once I hooked up the disconnected clutch lever sensor.



Now that I know it's good I make a plan.

I emailed R&R racing and they can provide a square tube subframe without the exhaust hanger or fairing mounts. This should allow me to use my stock mounting Sargent seat that survived the crash.


Time to start buying stuff.

04-05 GSX-R 1000 upper triple clamp



2006-2007 GSXR 750 front end



2007-2008 GSXR 1000 front wheel



Remove the subframe and battery box plastics



Test mount forks, top triple, and wheel. They fit (what a relief)!



The ignition doesn't clear the frame, easy fix using a dremel on the mounting holes.



Test fit all the brakes and controls. Surprisingly I have full motion without the clip-ons pinching my fingers against the frame.





Ordered some cheap used stock headers and spent a few hours making them shiny. I went over it with wire wheels, sand paper, metal files, and polishing wheel with Simichrome. I cleaned up the welds and removed spatter. I soaked the rusty hardware in white vinegar for a few days.



Delkevic 200mm carbon exhaust.



Mounted with the shiny headers. Can see where I tore off the head of a rusty bolt holding the front header pipe to the engine, may need to drill it out and tap it. It's only loosely held on by one bolt for now.



I will likely shorten the exhaust down-pipe a little but for now it works and should hold just fine without the exhaust hanger.




I'm now waiting on the subframe so I can fabricate an under-tail to mount an antigravity battery and all the electronics. I'm also deciding on a headlight.

More to come soon...


·
Registered
Joined
·
40 Posts
Discussion Starter · #5 ·
The clutch lever perch wouldn't fit on all the way on because it would hit the raised area at the end of the clip-on bar. It doesn't look like I'd be able to use the clutch perch from the GSXR so rather than buying one I decided to modify it.

Where it would hit I filed it down and used a Dremel to carve room so that it fits all the way on the clip-on bar. I also filed down the part where the threads for the clutch cable go in because it was a bit mangled. While I was at it I cut off the threads on the top using the Dremel metal cutting wheel and then used the angle grinder with a metal grinding pad to make it flush and finished off with filing and sand paper. I'll paint it later.



I also got a steering stem nut so now it's under its own weight for the first time since the crash.



·
V four honda whore
Joined
·
12,488 Posts
Look forward to this one. So far it is interesting


·
Newbie
Joined
·
65 Posts
subscribing!! I'm also building an sv fighter.. Considering bobbing mine as well but haven't decided yet.

I'm going opposite of you with the bars. I love dirty bars on a sportbike so im ditching the clip-ons.


·
Registered
Joined
·
40 Posts
Discussion Starter · #11 ·
If anyone wanted to know, the mods that will remain on the bike from before the crash are...
Power Commander, TPS adjusted for smooth low rpm, engine/swing arm Motosliders, PAIR removed, K&N air filter, SV1000 late model air box snorkel, and R6 throttle tube/grips.

A small update, I'm mostly waiting on parts.

I pulled off the air box and found it full of rocks and the frame full of rocks, may even see some in this picture.



After a lot of work prying with a big screw driver I removed this plastic thing that they clearly didn't intend to be removed. It was in the way and blocking air from flowing into the intake from under the front of the bike.



I'm sure it was there to protect the electrical or something.



It was holding the radiator overflow tube so I'll hide that somewhere.



I'm going to remove everything that isn't necessary to run and keep it very light and minimalist.


I finally got the sub-frame ordered, it took a week to get a call back.

After a lot of time trying to decide on a headlight I ordered an all black Polisport Halo Headlight. I wanted something that was smaller than the width of the forks and low profile when viewed from the side. It also uses standard H4 bulbs if I need to make it brighter.



·
Registered
Joined
·
40 Posts
Discussion Starter · #13 ·
I talked with R&R racing about the sub-frame early in the week. He was working on the SV650 sub-frames as I called and said it would be here Friday (tomorrow). It would be great to be able to work on it this weekend.



I got the headlight a while ago and I've been messing with how best to mount it. I attached it as high as possible without it scraping the steering stem when I turn the handlebars. I attached everything properly so I can be ready for the sub-frame and get a good idea of how it will look. I mocked up the seat as close as I could to where it will be. The front tire keeps going flat every few days, I'll be replacing it with something better anyway.












I was able to make one good mirror from my broken ones. I put it on the right side because it's hard to look over your right shoulder while holding the throttle and I only need one to be legal. I tucked everything cleanly behind the headlight and pulled all the excess wire into the frame. I like it a lot, now I need some tiny instruments to tuck behind it.




I removed this hippy shit, I can use zip ties for wires and I love the smell of fumes in the morning.



·
Registered
Joined
·
40 Posts
Discussion Starter · #14 ·
A quick update. I was expecting the subframe a long time ago but R&R Racing aren't the best with communication or returning phone calls. They shipped my subframe to the wrong person and have been waiting for them to ship it back so that they could ship it to me. I called them this morning and they will ship one out today. I should expect it by the middle of the week, we will see.

I'm going though withdrawals not having anything to ride, I nearly bought a 3rd motorcycle. Instead I put the old subframe on along with some lights I had laying around so that I can take it on the street while I'm waiting. It's going into the shop this week to install some All Balls steering neck bearings, patch up some vacuum leaks I created, and extract a broken off exhaust bolt.

I ordered a front fender yesterday and I have some LED strips that will be wrapped around the forks for my front turn signals.



I have a lot of plans for the subframe, I'm very anxious to get it.


·
Registered
Joined
·
40 Posts
Discussion Starter · #16 ·
I got the subframe today, although it did take another phone call to R&R racing. It's far lighter than I expected.







This will be the view from the rear.



I spent all night in the shop till past 2:00 am to get it road worthy. The shop will be closed until mid January so I had to get everything done that I can't do at home now or wait another month.

We replaced the steering barrings. The front tire had some grit in the bead that was causing it to leak so an easy fix. Plugged up a hose and a hole in the airbox. As for the broken off front exhaust header bolt, the shop across the parking lot tried to weld a nut on it but it failed. We later realized that someone replaced them with aluminum bolts. It was practically fused inside the engine. An extractor didn't work and likely would have broken off inside the hole (had this happen last time). We had to drill it out and tap it, it did break part of the tap so it put up a good fight. The bike wasn't throwing any codes and started right up once we realized I didn't put the tip over sensor back on the battery box.

I only took a couple pictures when we were doing the barrings. There wasn't much interesting to see anyway.







I was able to ride it home without any issues. I'm stoked to have a bike to ride again, it has been too long. The new front-end feels amazing, a completely different bike. The Delkevic exhaust sounds great with just the right amount of loudness.

Now that I have the subframe and it runs I can start making some real progress. More to come very soon.


·
Registered
Joined
·
40 Posts
Discussion Starter · #18 ·
Any chance you get that subframe on a scale? I'm curious what it weights
I believe that the website says it's 3lbs but I had parts left off so must be closer to 2lbs. It is seriously light. The frame is in my car at the shop so I'll put it and the OEM one on a scale before I put it on.


·
Registered
Joined
·
40 Posts
Discussion Starter · #19 ·
I test fit the new subframe and took some measurements. It weighs only 1.9 lbs.

The Sargent seat won't fit so I switched to a stock seat. I was going to modify the Sargent seat but I ran into an issue with a nut being lost inside the seat with no way to get to it without stripping the entire seat.

The threads at the top where the subframe attaches to the frame were very tight but were fine once I got the bolts all the way in. It took a bit of work to get everything lined up.

I could somewhat make the stock under-tail plastics fit. The top part is much smaller than the OEM subframe so the battery is too wide to fit.



















·
Registered
Joined
·
40 Posts
Discussion Starter · #20 ·
I rode the bike to work today and took some pictures. It gets a lot of looks and comments.

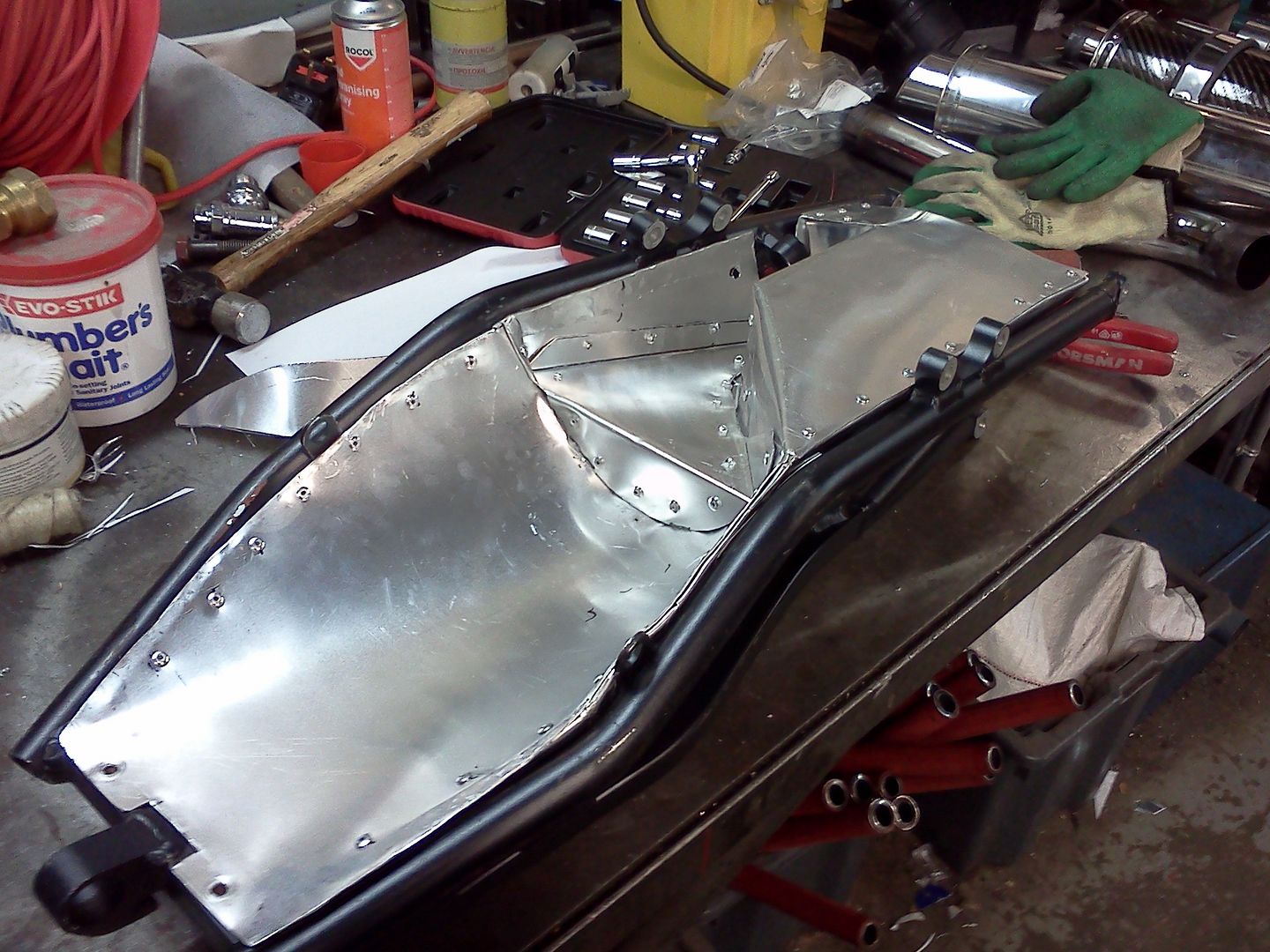

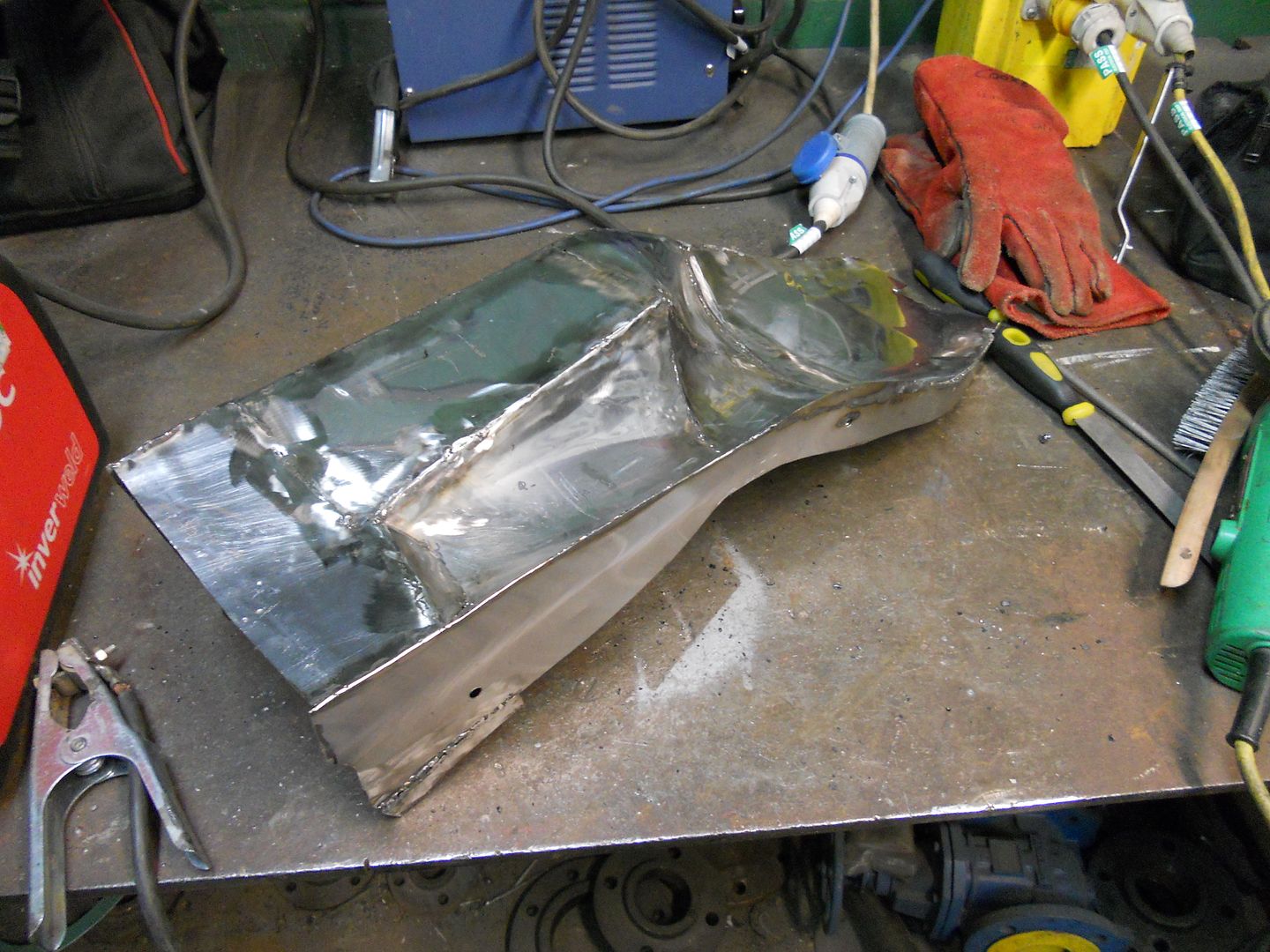

I'm thinking up ideas on how to do an aluminum under-tail. I have a very good idea of how it will look and how to build it. I've never worked with aluminum sheet before so it should be interesting. I'd like to have minimal bends so I can use alloy 6061. I think I could epoxy some nuts on it to bolt to the frame. The threaded holes on the frame are perfectly located for it.

I bought an Antigravity 8-Cell Small Case Lithium Battery and a lot of misc stuff for the bike. Once I have the battery I'll build an under-tail template from cardboard.
